Product Description:

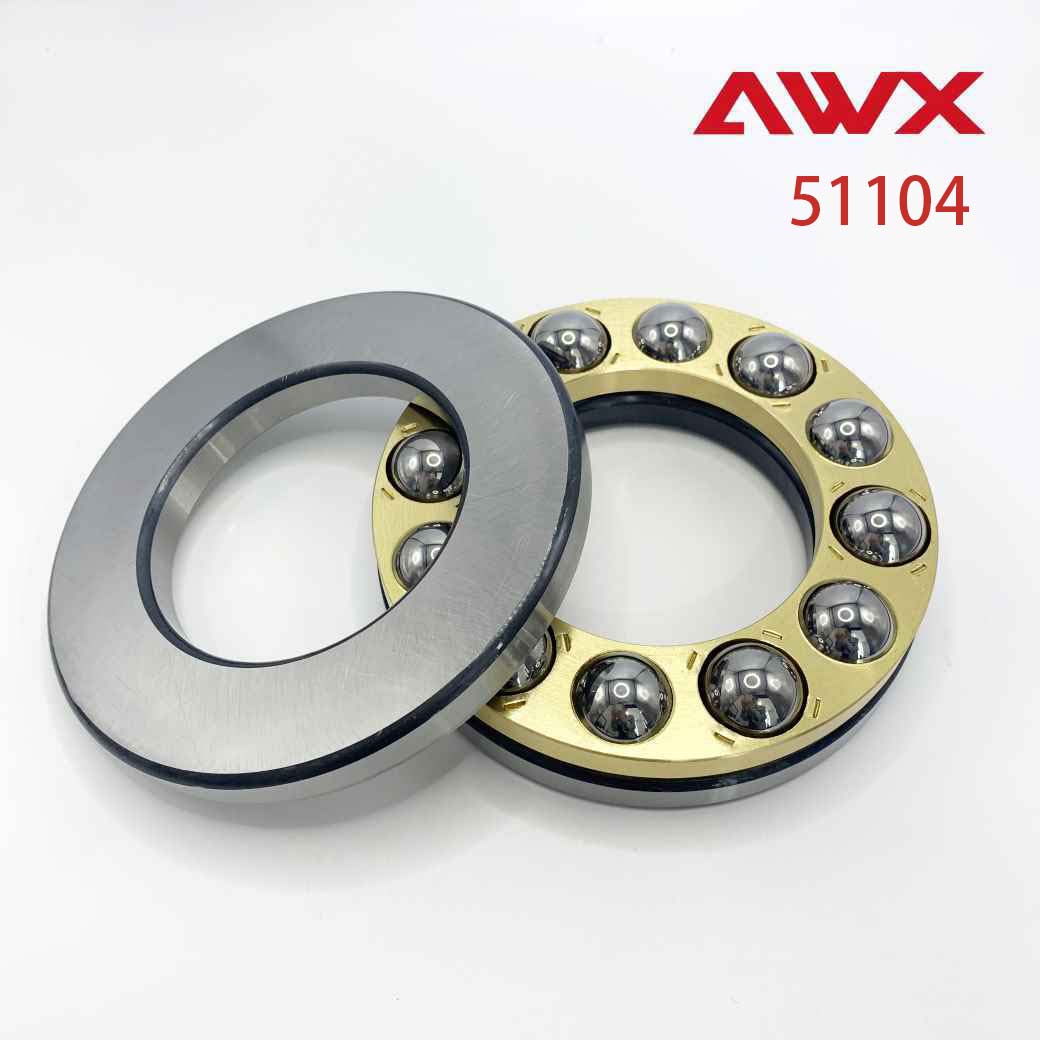

A thrust ball bearing is a type of ball thrust bearing that is
designed to handle axial loads only.
These bearings are made up of two parts, a housing washer and a
shaft washer, with the ball and cage assembly sandwiched between
them.
The thrust ball bearing is available with an open seal type, which
means they do not have any seals or shields to protect the bearing
from dirt and debris.
However, the open seal type allows for easy maintenance and
cleaning of the bearing.
The high precision feature of the thrust ball bearing ensures
accurate and smooth operation, even under heavy loads.
These bearings are also very durable and can withstand harsh
environments and extreme temperatures.
Thrust ball bearing is an essential component in many industrial
applications, providing reliable and efficient handling of bearing
axial loads.
Features:
A thrust ball bearing is a type of bearing that can support high
axial loads in one direction. It is commonly used in applications
where there is a need to withstand heavy loads or forces that are
pushing in one direction.
The ball thrust bearing is designed to accommodate misalignment and
shaft deflections. It is a great solution for applications where
there may be minor misalignments or movements in the shaft.
One of the advantages of using a thrust ball bearing is its low
friction and high rotating speeds. This makes it ideal for
applications that require high speed and low friction, such as in
automotive or industrial machinery.
The thrust radial ball has a compact design that allows for
space-saving installation. It is available in both single and
double direction designs to suit different requirements.
The ball thrust roller is another type of bearing that is suitable
for both low and high-speed applications. It is commonly used in
heavy-duty applications such as in aerospace or industrial
machinery.
The pusher-type bearing is designed specifically for heavy-duty
applications, such as automotive, industrial machinery, and
aerospace. It is made from high-quality materials for durability
and a long service life.
The thrusting ball bearing is easy to install and maintain. It is
available in a variety of sizes and configurations to meet
different application requirements.
Technical Parameters:
| model | inner diameter | outer diameter | high |
| 51100 | 10 mm | 24mm | 9mm |
| 51101 | 12mm | 26mm | 9mm |
| 51102 | 15mm | 28mm | 9mm |
| 51103 | 17mm | 30mm | 9mm |
| 51104 | 20mm | 35mm | 10mm |
| 51105 | 25mm | 42mm | 11mm |
| 51106 | 30mm | 47mm | 11mm |
| 51107 | 35mm | 52mm | 12mm |
| 51108 | 40mm | 60mm | 13mm |
| 51109 | 45mm | 65mm | 14mm |
| 51110 | 50mm | 70mm | 14mm |
| 51111 | 55mm | 78mm | 16mm |
| 51112 | 60mm | 85mm | 17mm |
| 51113 | 65mm | 90mm | 18mm |
| 51114 | 70mm | 95mm | 18mm |
| 51115 | 75mm | 100mm | 19mm |
| 51116 | 80mm | 105mm | 19mm |
| 51117 | 85mm | 110mm | 19mm |
| 51118 | 90mm | 120mm | 22mm |
| 51120 | 100mm | 135mm | 25mm |
| 51122 | 110mm | 145mm | 25mm |
| 51124 | 120mm | 155mm | 25mm |
| 51126 | 130mm | 170mm | 30mm |
| 51128 | 140mm | 180mm | 31mm |
| 51130 | 150mm | 190mm | 31mm |
| 51132 | 160mm | 200mm | 31mm |
| 51134 | 170mm | 215mm | 34mm |
| 51136 | 180mm | 225mm | 34mm |
| 51138 | 190mm | 240mm | 37mm |
| 51140 | 200mm | 250mm | 37mm |
| 51144 | 220mm | 270mm | 37mm |
| 51148 | 240mm | 300mm | 45mm |
| 51152 | 260mm | 320mm | 45mm |
| 51156 | 280mm | 350mm | 53mm |
| 51160 | 300mm | 380mm | 62mm |
| 51164 | 320mm | 400mm | 63mm |
| 51168 | 340mm | 420mm | 64mm |
| 51172 | 360mm | 440mm | 66mm |
| 51176 | 380mm | 460mm | 65mm |
| 51180 | 400mm | 480mm | 65mm |
| 51184 | 420mm | 500mm | 65mm |
| 51188 | 440mm | 540mm | 80mm |
| 51192 | 460mm | 560mm | 80mm |
| 51196 | 480mm | 580mm | 80mm
|
Applications:
1.Thrust Ball Bearing is designed to handle axial loads in one
direction and is commonly used in applications where there is a
need to support heavy loads. The bearing is also suitable for use
in high-speed applications, thanks to its high precision design.
2.The AWX Thrust Ball Bearing is commonly used in the automotive
industry, where it is used to support heavy loads and provide a
smooth and reliable operation. Thrust Ball Bearing of applications
conveyor systems, machine tools, and more.
3.Another application of the AWX 51100 Thrust Ball Bearing is in
the construction industry. The bearing is commonly used in
construction machinery, where it is used to support heavy loads and
provide a smooth and reliable operation. It is also used in the
agricultural industry, where it is used in a range of applications,
such as tractors and other agricultural machinery.
4.The AWX 51100 Thrust Ball Bearing is a high-quality product that
is available at an affordable price. It has a minimum order
quantity of 10 and is priced between 0.1-0.4usd per piece. The
bearing is delivered in a single box and has a delivery time of 30
days. Payment terms include L/C, D/A, D/P, T/T, Western Union, and
MoneyGram. The product has a supply ability of 10000pcs and is
manufactured in China.
Customization:
AWX 51100 thrust ball bearing with our product customization services. Our
thrust ball roller bearings are designed to handle axial loads and are perfect for
applications that require low speed and low thrust loads. Our
ball-bearing thrust bearings are made in China with high precision and are
interchangeable with 51100 bearings.
Our minimum order quantity is 10 and the price ranges from
0.1-0.4usd. The packaging details include a single box and the
delivery time is 30 days. We accept various payment terms such as
L/C, D/A, D/P, T/T, Western Union, and MoneyGram. Our supply
ability is 10000pcs and the seals type is OPEN. The outer diameter
is 110mm and the inner diameter is 70mm.
Choose us for our high-quality thrust radial ball bearings and customize your product according to your needs.
FAQ:
Q1: What is the brand name of this thrust ball bearing?
A1: The brand name of this thrust ball bearing is AWX.
Q2: What is the model number of this product?
A2: The model number of this product is 51100.
Q3: Where is this product manufactured?
A3: This product is manufactured in China.
Q4: What is the minimum order quantity for this product?
A4: The minimum order quantity for this product is 10.
Q5: What is the price range of this product?
A5: The price range for this product is between 0.1-0.4 USD.
Q6: What is the packaging detail for this product?
A6: The packaging detail for this product is a single box.
Q7: What is the delivery time for this product?
A7: The delivery time for this product is 30 days.
Q8: What are the payment terms for this product?
A8: The payment terms for this product are L/C, D/A, D/P, T/T,
Western Union, and MoneyGram.
Q9: What is the supply ability of this product?
A9: The supply ability of this product is 10000pcs.
