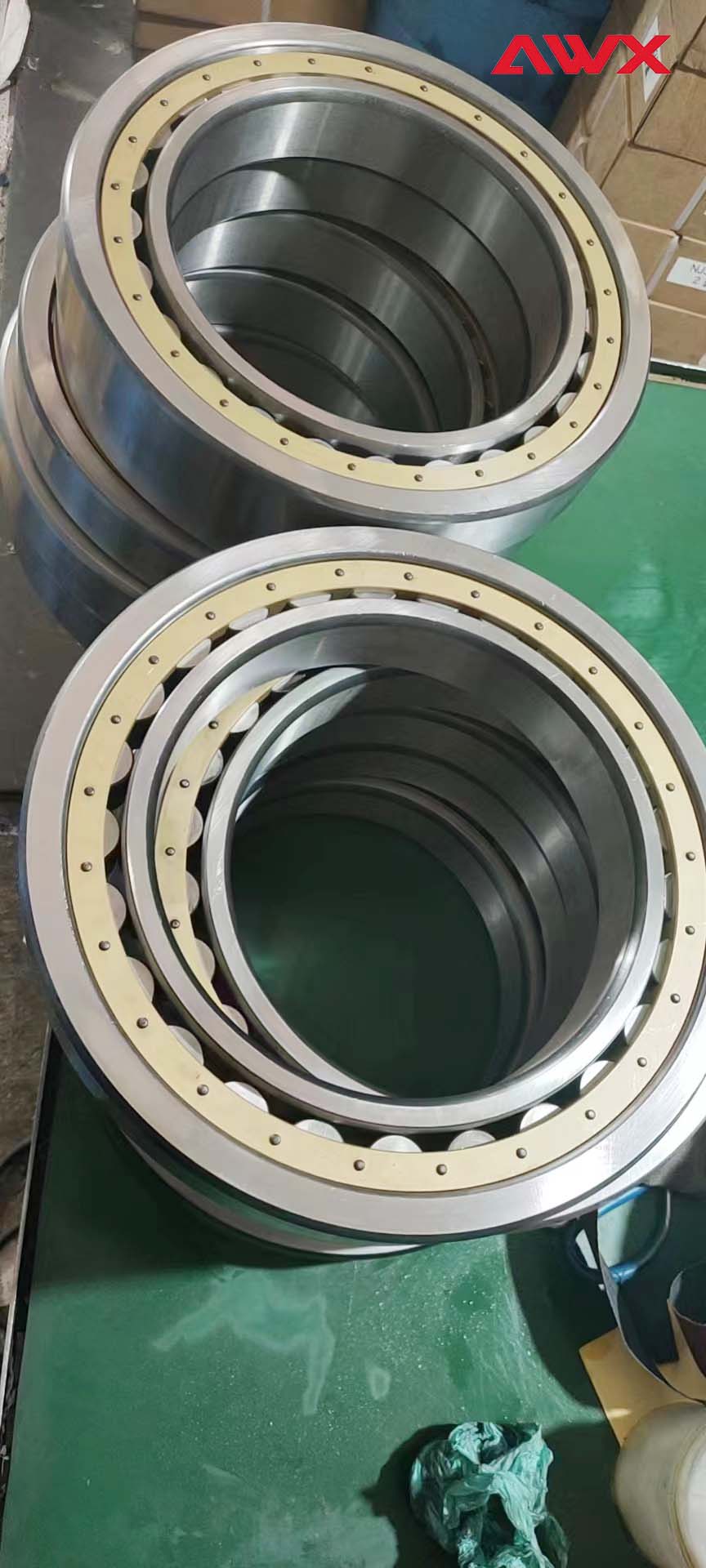

Slow Speed Vibration NUP2200 Series Cylindrical Roller Bearings With Free Samples Provided

Product Description:

Cylindrical roller bearings are designed with a straightforward structure consisting of cylindrical rollers that are in direct contact with the raceways. These bearings are capable of handling high loads under primarily radial loads.With a low friction coefficient between the rollers and ring ribs, cylindrical roller bearings are particularly well-suited for high-speed rotation.Single-row bearings are classified as NU, NJ, NUP, N, or NF, while double-row bearings are classified as NNU or NN based on whether side ribs are used.

Features:

Excellent Sealing

The use of contact seals greatly reduces the risk of water and foreign matter entering the bearing, which in turn increases its longevity and efficiency. This feature is particularly important for applications where the bearing is exposed to harsh environments or contaminants.

High Load Capacity

Designed with the ability to support significant radial and thrust loads, these bearings are ideal for use in crane sheaves. This capacity allows for smooth and safe operation, reducing the chance of downtime or equipment failure.

Corrosion-Resistant

With a phosphate coating applied to improve resistance to rust and corrosion, these bearings are able to withstand the challenges of harsh environments, without losing their effectiveness or lifespan.

Technical Parameters:

NUP2200 Series

Bearing No.	Principal Dimensions(mm)					Basic Load Ratings(KN)		Limited Speed(rpm)		Weight (kg)
	d	D	B	rs min	rs1 min	Dynamic(Cr)	Static(Cor)	Grease	Oil
NUP2204E	20	47	18	1	0.6	30.5	28.3	14000	1 6000	0.158
NUP2205E	25	52	18	1	0.6	35	34.5	11 000	13000	0.186
NUP2206E	30	62	20	1	0.6	49	50	9700	11000	0.297
NUP2207E	35	72	23	1.1	0.6	61.5	65.5	8500	1 0000	0455
NUP2208	40	80	23	1.1	1.1	58	62	8500	1 0000	0.49
NUP2208E	40	80	23	1.1	1.1	72.5	77.5	7600	8900	0.552
NUP2209	45	85	23	1.1	1.1	61.5	68	7600	9000	0.53
NUP2209E	45	85	23	1.1	1.1	76	84.5	6800	8000	0.6
NUP2210	50	90	23	1.1	1.1	64	73.5	6900	8100	0.571
NUP2210E	50	90	23	1.1	1.1	79.5	91.5	6200	7300	0652
NUP2211	55	100	25	1.5	1.1	75.5	87	6300	7400	0.773
NUP2211E	55	100	25	15	1.1	97	114	5600	6600	0968
NUP2212	60	110	28	1.5	1.5	96	116	5800	6800	1.06
NUP2212E	60	110	28	1.5	1.5	131	157	5200	6100	121
NUP2213	65	120	31	15	1.5	120	149	5400	6300	1.4
NUP2213E	65	120	31	1.5	1.5	149	181	4800	5600	16
NUP2214	70	125	31	15	1.5	119	151	5000	5900	1.47
NUP2214E	70	125	31	15	15	156	194	4500	5200	1.7
NUP2215	75	130	31	1.5	1.5	130	162	4700	5500	1.55
NUP2215E	75	130	31	15	1.5	162	207	4200	4900	1.79
NUP2216	80	140	33	2	2	147	186	4400	5100	1.93
NUP2216E	80	140	33	2	2	186	243	3900	4600	2.12
NUP2217	85	150	36	2	2	170	218	4100	4800	2.44
NUP2217E	85	150	36	2	2	217	279	3700	4300	2.68
NUP2218	90	160	40	2	2	197	248	3900	4600	3.1
NUP2218E	90 160		40	2	2	242	315	3500	4100	3.33
NUP2219	95	170	43	2.1	2.1	230	298	3600	4300	3.79
NUP2219E	95	170	43	2.1	2.1	286	370	3300	3800	4.14
NUP2220	100	180	46	2.1	2.1	258	340	3500	4100	4. 57
NUP2220E	100	180	46	2.1	2.1	335	445	3100	3600	5.01
NUP2222	110	200	53	2.1	2.1	320	415	3100	3700	6. 56
NUP2222E	110	200	53	2.1	2.1	385	515	2800	3300	7.4
NUP2224	120	215	58	2.1	2.1	350	460	2900	3400	8.19
NUP2224E	120	215	58	2.1	2.1	450	620	2600	3000	9.18
NUP2226	130	230	64	3	3	380	530	2600	3100	10.2
NUP2226E	130	230	64	3	3	530	735	2300	2700	11.8
NUP2228	140	250	68	3	3	445	635	2400	2800	12.9
NUP2228E	140	250	68	3	3	575	835	2100	2500	15.8
NUP2230	150	270	73	3	3	500	710	2200	2600	16.3
NUP2230E	150	270	73	3	3	660	980	2000	2400	19.7

Applications:

1. EW Series CRBs feature high load capacity with high-performance pressed steel cages suitable for a wide variety of industrial applications.

2. EM Series CRBs feature high load capacity with machined, one-piece brass cages suitable for all kinds of industrial applications.

3. ET Series high load capacity CRBs with polyamide resin cages support continuous operation at temperatures ranging from -40 to 120°C.

Company

Shandong AWEIX Bearing Co., Ltd. is a professional bearing manufacturer that can design and manufacture reinforced spherical roller bearings, reinforced cylindrical roller bearings, reinforced tapered roller bearings, high-precision machine tool bearings, outer spherical bearings, and textile and mining machinery bearings.

The company's R&D platform is dedicated to the research and manufacture of high-end bearing products, forming a research team with solid theory and courage to innovate. Our factory uses high-quality chrome steel and stainless steel as raw materials, and specializes in the design, development and manufacture of deep groove ball bearings, stainless steel bearings, stainless steel outer ball bearings, tapered bearings, cylindrical bearings, needle roller bearings, thrust bearings, bearing seats and non-standard bearings.

FAQ:

Q: What is the brand name of these cylindrical roller bearings?

A: The brand name of our cylindrical roller bearings is AWX.

Q: Where are these cylindrical roller bearings manufactured?

A: Our cylindrical roller bearings are manufactured in China.

Q: Does this product come with any certification?

A: Yes, our cylindrical roller bearings are CE/ISO certified.

Q: What is the minimum order quantity for these cylindrical roller bearings?

A: The minimum order quantity for our cylindrical roller bearings is 10pcs.

Q: How are these cylindrical roller bearings packaged for delivery?

A: Our cylindrical roller bearings are packaged in cartons for delivery.

Q: What is the delivery time for these cylindrical roller bearings?

A: We can deliver these cylindrical roller bearings within 7 days.

Q: What is the supply ability for these cylindrical roller bearings?

A: Our supply ability for these cylindrical roller bearings is 1000000.

Awx Bearing is a modern scientific and technological enterprise intergrating research and development, producing and trading. Since established, it has been committed to manufacturing high quality and high precision bearings, with the quality level of P0/P6/P5,(Z1V1) (Z2V2) (Z3V3). The registered brand is AWX . The company has two factories, the rough processing, heat treatment factory and the finishing, assembly, storage factory, research building, etc.

The company has 5 factories, 150 production equipment, 15 testing equipment and 200 employees. The company is professionally committed to the research and manufacture of high-end bearing products, we has a research team with solid theory and courage to innovate. The company currently has 36 middle and senior technical personnel, including 14 senior professional titles and 22 intermediate professional titles.

AWX is a backbone enterprise specializing in the production of reinforced spherical roller bearings, reinforced cylindrical roller bearings, reinforced tapered roller bearings, high-precision machine tool bearings, outer spherical bearings, textile and mining machinery bearings and other products. The company's main business is the research, development, production and sales of deep groove ball bearings, spherical roller bearings, cylindrical roller bearings, tapered roller bearings, and outer spherical bearings. High performance, high precision, high stability and low price meet the needs of domestic high-end customers and truly complete the transformation of replacing imports.

AWX products are widely used in cars, buses, trucks, engineering vehicles, Forklift gantry, agricultural machinery, paper-making, power-generation, mining, metallurgy, machine tools, petroleum and railway etc. In order to provide better service to customers and be convenient for customers to come to discuss and cooperate, our company established Shandong Awx Bearing Co., Ltd.,Ltd in JINAN city, Shandong province. The company has excellent sales team and R & D team, that makes the AWX bearing to be famous brand in the field.
In order to improve the popularity, our company attend many exhibition around the world annually, and we continue to participate in each session of shanghai international bearing professional exhibition, china import and export commodities fair, beijing international automobile exhibition, shanghai frankfurt auto parts exhibition etc

We have completely production line, and are always strictly controlling each process of production, from raw material making, turning to heat treatment, from grinding to assembly, from cleaning, oiling to packing etc. The operation of each process is very meticulously. In the process of production, through self-inspection, follow inspection, sampling inspection, full inspection, such as strict as quality inspection, it made all the performances reached the international standard. At the same time, the company set up advanced testing center, introduced the most advanced testing instrument: three coordinates, length measuring instrument, spectrometer, profiler, roundness meter, vibration meter, hardness meter, metallographic analyzer, bearing fatigue life testing machine and other measuring instruments etc. About the quality of the product to entire prosecution, the comprehensive performance of comprehensive inspection products, ensure AWX to reach the level of zero defect products！Our products have been matched with many demestic and foreign OEM customer, and exported to European Union, south america, north america, southeast asia, the middle East, africa and other 30 countries.
AWX bearing with long life, high precision and high performance won the trust of our customers, we will make persistent efforts to create more value and wealth for customers. Welcome hand in hand with AWX company, to create beautiful tomorrow！
