Product Description:

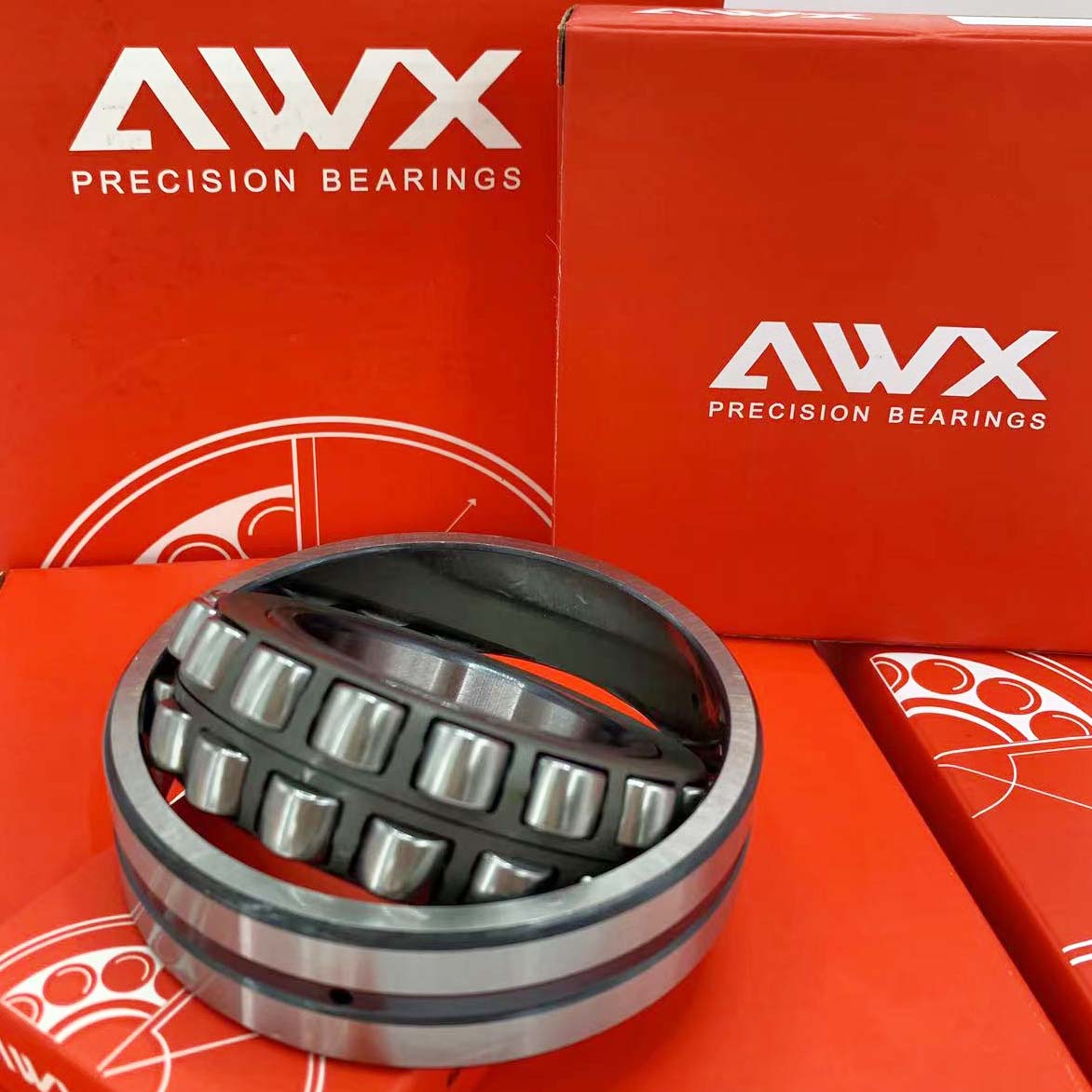

Spherical roller bearings are a type of rolling bearings that
possess the capability of withstanding large radial loads and
certain axial loads. The remarkable feature of these bearings is
that the centers of their inner and outer rings can be tilted to
the axis. As a result, they can automatically adjust their centers
and possess the ability to align themselves.
The spherical roller bearings are designed with double-row rollers,
a common spherical raceway on the outer ring, and two inner ring
raceways that are tilted at an angle relative to the bearing axis.
With this unique structure, these bearings can automatically adjust
axis misalignment which can be caused by the deflection or
non-concentricity of the shaft or housing. They provide excellent
aligning performance in this manner.
Features:
The spherical roller bearing has an automatic self-aligning
property, which is a result of its design. The presence of a
spherical raceway between the inner and outer rings of the bearing
enables it to automatically adjust the deviation of the axis and
maintain stable operation even if the shaft or housing is deflected
or not concentric. This feature greatly reduces the requirements
for installation accuracy and prolongs the service life of the
bearing.
Aside from its automatic self-aligning capability, the spherical
roller bearing also boasts a high load-bearing capacity. Its
double-row roller structure and spherical raceway design between
the inner and outer rings enable the bearing to maintain stable
operation when bearing heavy loads. This feature effectively
disperses the load and minimizes stress concentration on the
bearing.
The spherical roller bearing can also withstand impact loads due to
its automatic self-aligning and high load-bearing capacity. This
makes it ideal for mechanical equipment that requires stability and
durability when bearing impact loads.
In terms of applicability, the spherical roller bearing has an
inner hole that is cylindrical and conical. The tapered inner hole
bearing is equipped with a tightening sleeve or a withdrawal
sleeve, which allows for easy assembly on smooth or stepped machine
shafts. This design enables the bearing to adapt to a variety of
installation requirements and improve its applicability.
The spherical roller bearing operates smoothly, maintaining a
stable state during operation and reducing vibration and noise.
This helps to enhance the operating efficiency and service life of
mechanical equipment while also reducing noise pollution in the
surrounding environment.
Maintenance of the spherical roller bearing is relatively simple
and easy. Disassembly and installation can be done quickly when
replacement or maintenance is needed, reducing downtime and
maintenance costs.
Technical Parameters:
Model and Dimension Information
Here is a table of models and their corresponding inner diameter,
outer diameter, and height:
| Model | Inner diameter | Outer diameter | Height |
|---|
| 22205CC/W33 | 25mm | 52mm | 18mm |
| 22206CC/W33 | 30mm | 62mm | 20mm |
| 22207CC/W33 | 35mm | 72mm | 23mm |
Applications:
Spherical Roller Bearings and their Wide Range of Applications
Spherical roller bearings are widely used in multiple industrial
fields, owing to their unique characteristics. They possess a high
load capacity, good stability, and unique self-aligning ability,
which enables them to adapt to various complex working
environments. In this article, we will discuss the main application
areas of spherical roller bearings, which are summarized below:
Papermaking Machinery
Spherical roller bearings are widely used in papermaking machinery,
where they are used to support and drive various rollers, along
with other equipment. The commonly used models of spherical roller
bearings are 22314CAK, 22316CAK, 22320CAK, and others.
Speed Reducer
Spherical roller bearings play an important role in different types
of speed reducers, including gear reducers, overweight speed
reducers, worm reducers, etc. The commonly used models of spherical
roller bearings are 22320CA, 22318CA, 22324CA, and others.
Railway Vehicle Axle
Spherical roller bearings are used for axle support of railway
vehicles, ensuring their stable operation.
Rolling Mill Gearbox Bearing Seat and Roller Table
In rolling mills, spherical roller bearings are used to support
gearboxes and roller tables, and they bear huge radial and axial
loads. The commonly used models of spherical roller bearings are
22318CA, 22320CA, 22326CA, and others.
Crusher and Vibrating Screen
In mining machinery, spherical roller bearings are used in
crushers, vibrating screens, and other equipment to withstand
impact loads and vibrations. The commonly used models of spherical
roller bearings are 21316CA, 23172CA, 22324CA, and others.
Printing Machinery and Woodworking Machinery
Spherical roller bearings are used to support and drive various
rollers and cutters in printing and woodworking machinery. The
commonly used models in textile machinery include 22209CAP62,
22310CAP62, and others.
Fan
In fans, such as Roots blowers and centrifugal fans, spherical
roller bearings are used to support and drive the shaft of the fan.
The commonly used models of spherical roller bearings are 22209CA,
21310CA, and others.
Metallurgical Rolling Mill
In metallurgical rolling mills, spherical roller bearings are used
to support rollers and transmission mechanisms. The commonly used
models of spherical roller bearings are 22222CA, 22318CA, 22320CA,
and others.
Other Fields
In addition to the above areas, spherical roller bearings are
widely used in industries and equipment such as ships, textiles,
mills, electricity, washing equipment, transmission gearboxes, and
others.
