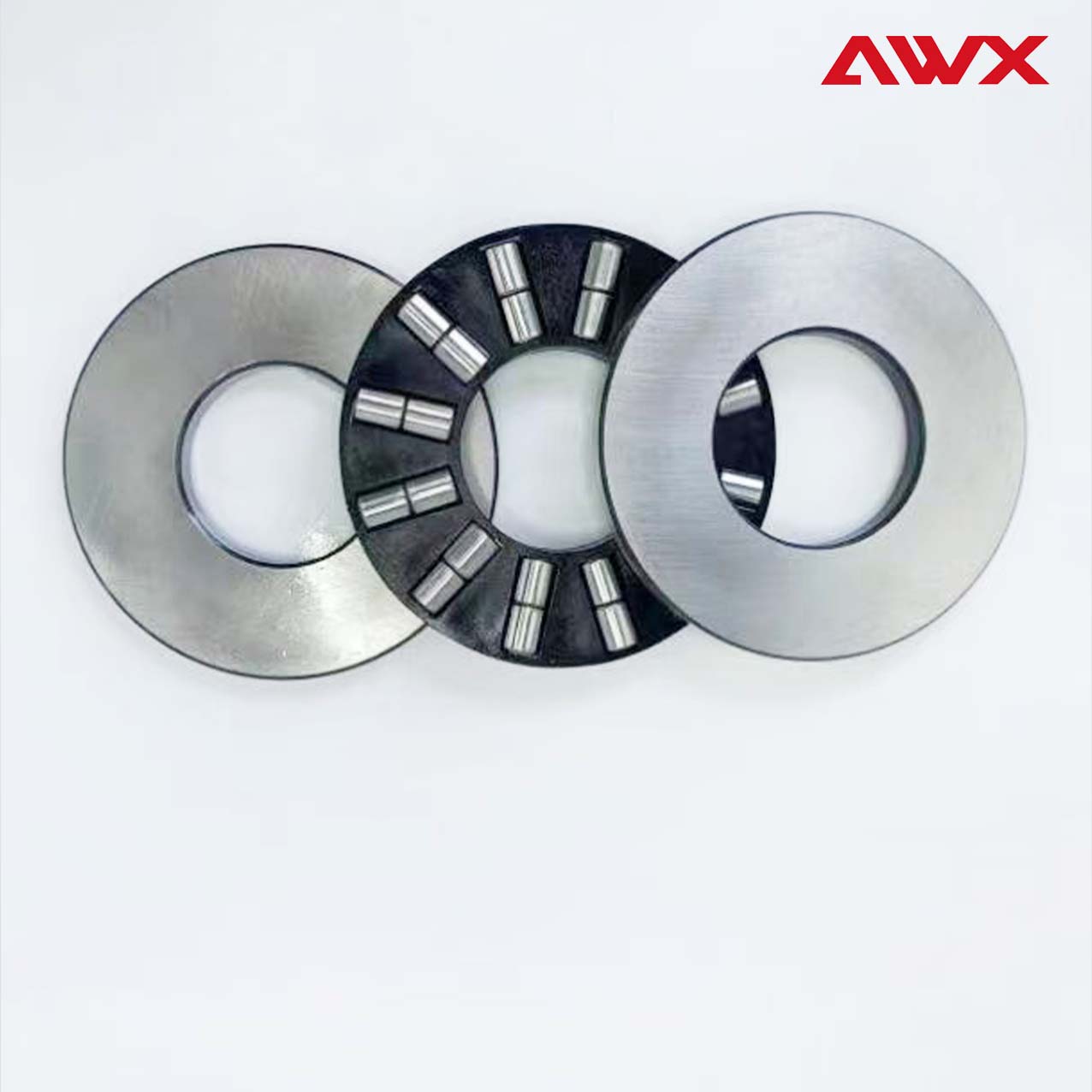

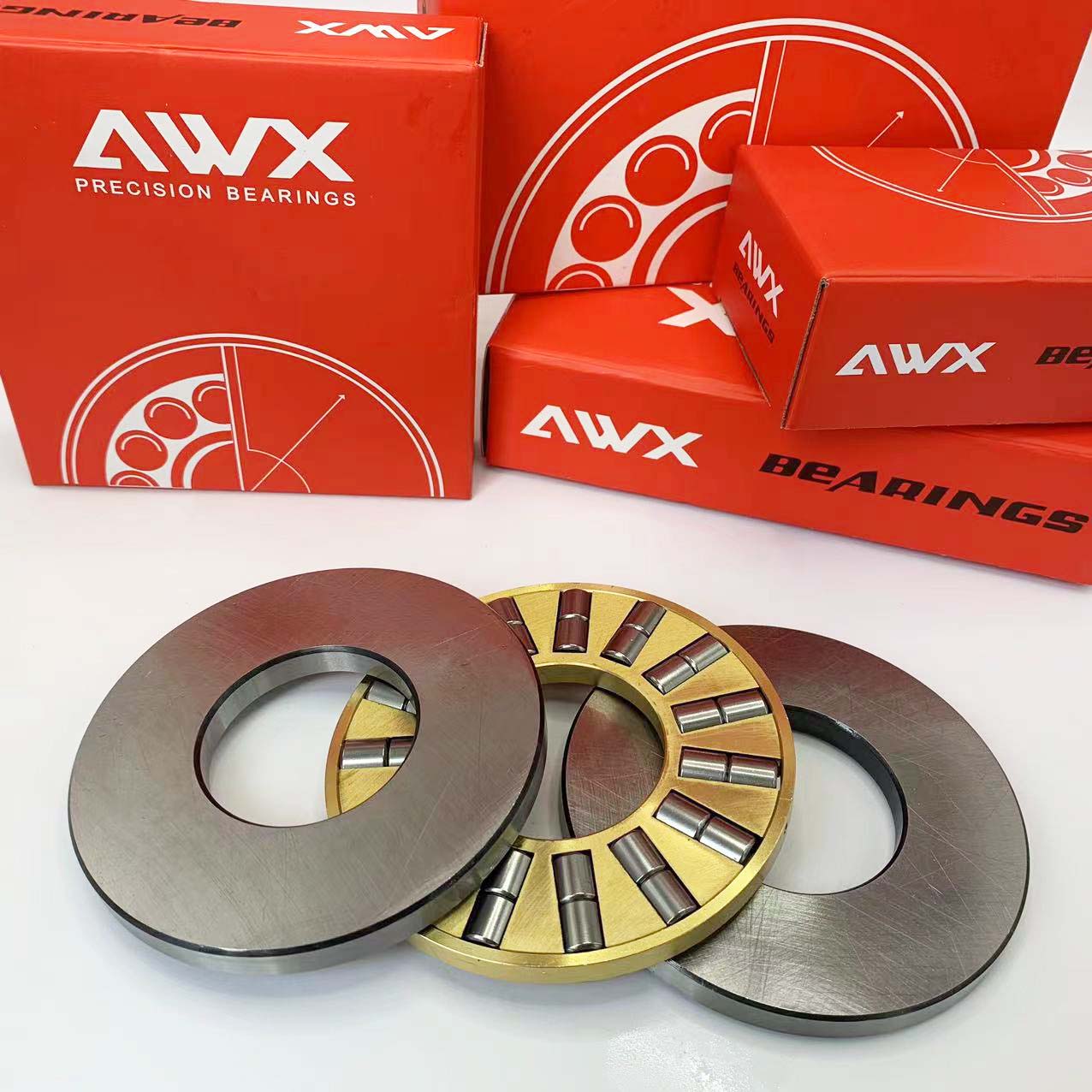

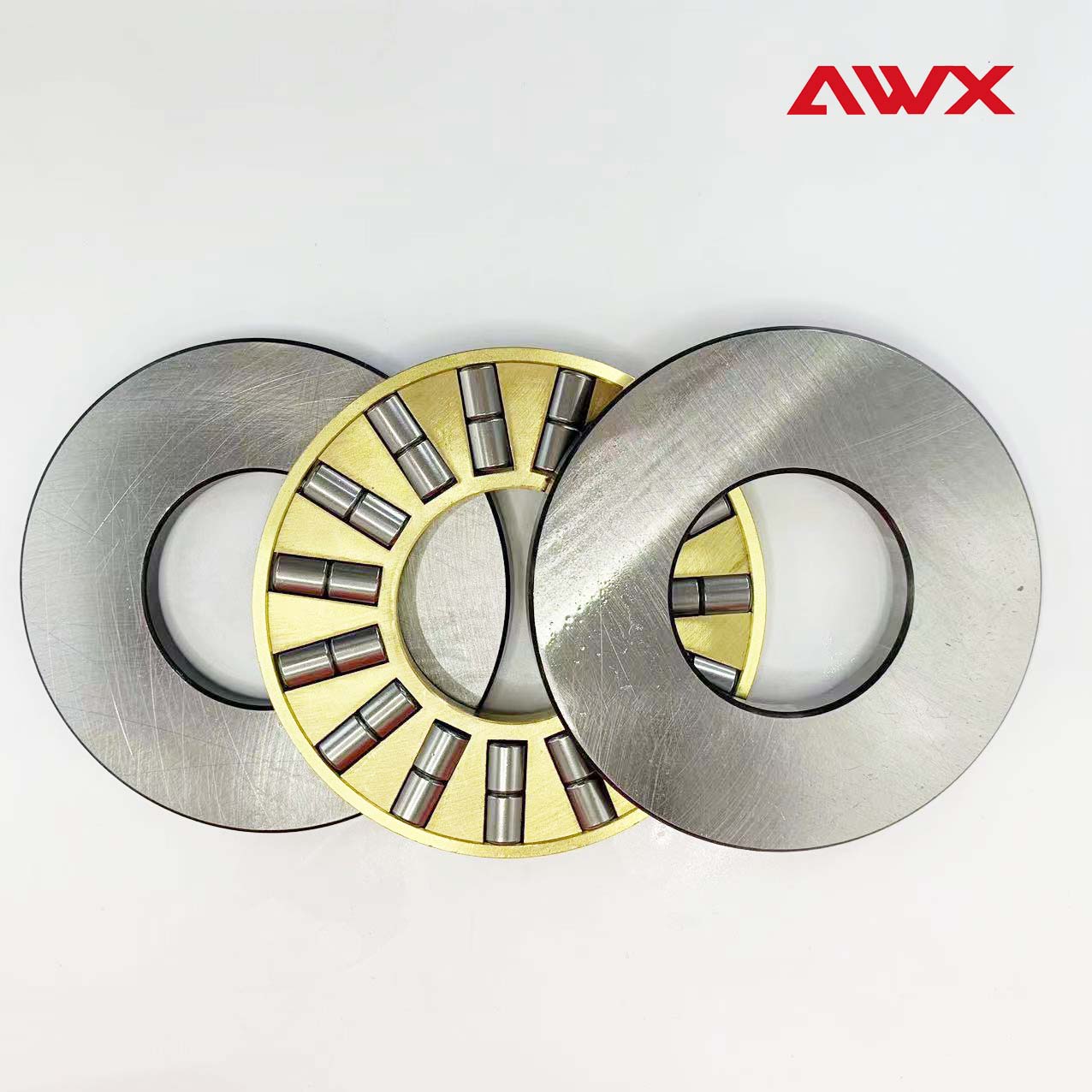

Steel Cage 29416-E 29416-E1 Single Direction Axial Spherical Roller
Bearing
Product Description:
Thrust roller bearings are a type of bearing designed to withstand
axial loads. They withstand axial loads through rollers arranged
inside the bearing, allowing the bearing to effectively support and
transmit unidirectional or bidirectional axial forces.
Features:
High load-bearing capacity: The thrust roller bearing is reasonably
designed, and the rolling elements (rollers) are closely arranged,
which can withstand large axial loads and have high load-bearing
capacity.
Good rigidity: Since the rollers roll in the race and bear axial
loads, the thrust roller bearings have good rigidity and can
maintain axial stability.
High rotation accuracy: While bearing axial loads, the thrust
roller bearings can achieve high-precision rotation to ensure
efficient operation of mechanical equipment.
Strong adaptability: Thrust roller bearings can be used to bear
pure axial loads or axial and radial composite loads, with a wide
range of adaptability to meet the needs of different applications.
Low friction: When the rollers roll in the races, the friction is
small, which can reduce energy loss and wear and increase the
service life of the bearings.
Easy installation: The thrust roller bearing has a simple design
structure and is easy to install. Usually, it only needs to ensure
correct alignment and lubrication.
Long life: When properly installed and maintained, thrust roller
bearings can provide stable and reliable operation and have a long
service life.
Technical Parameters:
Bearing Model | d (mm) | D (mm) | B (mm) |
| 29412-E1 | 60 | 130 | 42 |
| 29413-E1 | 65 | 140 | 45 |
| 29414-E1 | 70 | 150 | 48 |
| 29415-E1 | 75 | 160 | 51 |
| 29416-E1 | 80 | 170 | 54 |
| 29417-E1 | 85 | 180 | 58 |
| 29418-E1 | 90 | 190 | 60 |
| 29420-E1 | 100 | 210 | 67 |
| 29422-E1 | 110 | 230 | 73 |
| 29424-E1 | 120 | 250 | 78 |
| 29426-E1 | 130 | 270 | 85 |
| 29428-E1 | 140 | 280 | 85 |
| 29430-E1 | 150 | 300 | 90 |
| 29432-E1 | 160 | 320 | 95 |
| 29434-E1 | 170 | 340 | 103 |
| 29436-E1 | 180 | 360 | 109 |
| 29438-E1 | 190 | 380 | 115 |
| 29440-E1 | 200 | 400 | 122 |
| 29444-E1 | 220 | 420 | 122 |
| 29448-E1 | 240 | 440 | 122 |
Bearing Model | d (mm) | D (mm) | B (mm) |
| 29392-E-MB | 460 | 710 | 150 |
| 29396-E-MB | 480 | 730 | 150 |
| 293/500-E-MB | 500 | 750 | 150 |
| 293/530-E-MB | 530 | 800 | 160 |
| 293/560-E-MB | 560 | 850 | 175 |
| 293/600-E-MB | 600 | 900 | 180 |
| 293/630-E-MB | 630 | 950 | 190 |
| 293/670-E-MB | 670 | 1000 | 200 |
| 293/750-E-MB | 750 | 1120 | 224 |
| 293/800-E-MB | 800 | 1180 | 230 |
| 293/850-E-MB | 850 | 1250 | 243 |
| 293/900-E-MB | 900 | 1320 | 250 |
| 293/950-E-MB | 850 | 1250 | 243 |
| 293/1000-E-MB | 1000 | 1460 | 276 |
| 293/1250-E-MB | 1250 | 1800 | 330 |
| 293/1600-E-MB | 1600 | 2280 | 408 |
Applications:
The AWX Thrust Roller Bearing is a high-quality product
manufactured in China and certified with ISO9001:2000 and TS16949.
It has a minimum order quantity of 10pcs and a supply ability of
10000pcs. The price is negotiable and it comes packaged in a single
box with a delivery time of 30 days. Payment terms include L/C,
D/A, D/P, T/T, Western Union, and MoneyGram.
This product is a Tandem Thrust Cylindrical Roller structure with a
single row and a wide temperature range. It is designed to
withstand thrust loads and is ideal for use in heavy-duty
applications such as construction, mining, and transportation. The
Thrust Compensated Roller Bearing feature helps to reduce friction
and wear, while the Thrust Shock Absorbing Roller Bearing feature
helps to absorb shock and vibration, making it perfect for use in
harsh environments.
The AWX Thrust Roller Bearing is suitable for a variety of
occasions and scenarios, including but not limited to:
- Heavy machinery and equipment
- Construction equipment
- Mining equipment
- Oil and gas industry
- Agricultural machinery
- Transportation industry
The AWX Thrust Roller Bearing is available in a range of clearances
including C1, C2, C0, C3, C4, and C5. With 300pcs in stock, it is
ready to be shipped to customers worldwide. Contact us now to
negotiate a price and place your order.
Packing and Shipping:
Product Packaging:
- The thrust roller bearing will be packed in a sturdy cardboard box
to ensure its safety during transportation.
- The box will be labeled with the product name, size, and quantity
for easy identification.
- Additional packaging materials such as bubble wrap or packing
peanuts may be used to provide extra protection.
Shipping:
- The thrust roller bearing will be shipped via a reputable carrier
such as UPS or FedEx.
- Shipping options such as standard or expedited shipping may be
available at checkout.
- The customer will receive a tracking number once the product has
been shipped.
- Delivery times will vary depending on the shipping method selected
and the destination.
FAQ:
Q: What is the brand name of the thrust roller bearing?
A: The brand name of the thrust roller bearing is AWX.
Q: Where is the place of origin for the thrust roller bearing?
A: The thrust roller bearing is made in China.
Q: What certifications does the thrust roller bearing have?
A: The thrust roller bearing has ISO9001:2000 and TS16949
certifications.
Q: What is the minimum order quantity for the thrust roller
bearing?
A: The minimum order quantity for the thrust roller bearing is
10PCS.
Q: What are the payment terms for the thrust roller bearing?
A: The payment terms for the thrust roller bearing are L/C, D/A,
D/P, T/T, Western Union, and MoneyGram.
Q: What is the price of the thrust roller bearing?
A: The price of the thrust roller bearing is negotiable.
Q: What are the packaging details for the thrust roller bearing?
A: The packaging details for the thrust roller bearing is a single
box.
Q: What is the delivery time for the thrust roller bearing?
A: The delivery time for the thrust roller bearing is 30 days.
Q: What is the supply ability for the thrust roller bearing?
A: The supply ability for the thrust roller bearing is 10000pcs.
